Route. Reorient. Align. Assemble.
APPLICATION BRIEF · FIBER OPTICS

Four 3D printed parts for dense fiber assemblies, each a single printed piece with real specs. Download the brief for photos, dimensions and design guidance.

01 / 04 — ROUTE
Complex 3D & multiplane fiber paths
A printed structure that holds each fiber in a set path as it moves through different planes, elevations and directions.

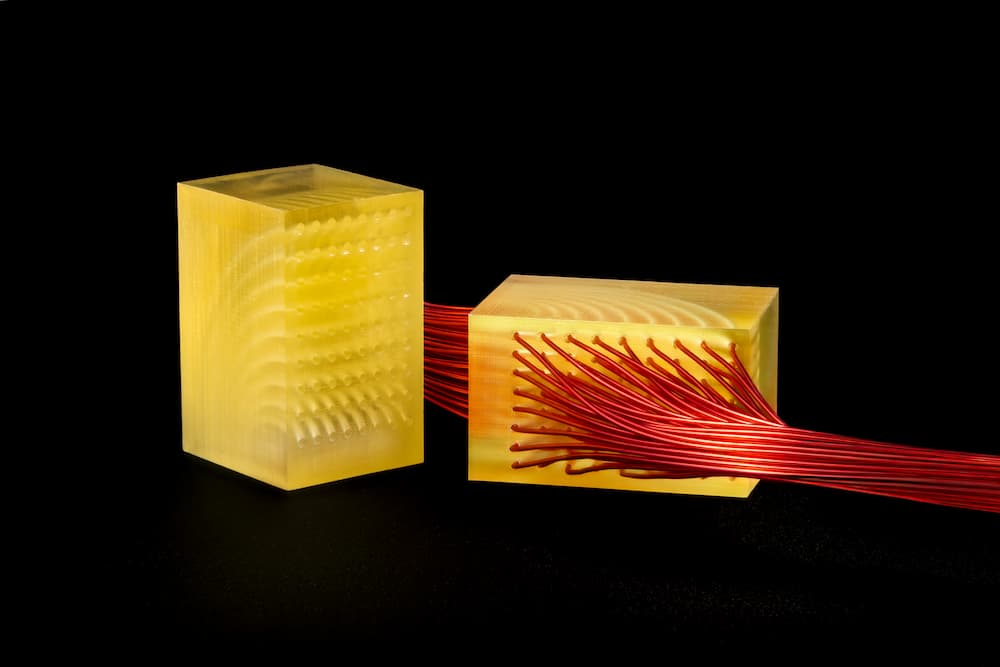

SHOWN: Shuffle block, 6×12 fiber array, 5 × 7 × 23 mm, 250 µm holes on 330 µm pitch

02 / 04 — REORIENT
Change fiber position, pitch & orientation
Fibers go in one arrangement and come out in another, with a new pitch, spacing, direction or plane.

SHOWN: Fiber array guide, 15 × 10 × 9 mm, 500 µm holes on 1 mm pitch and 400 µm holes on 650 µm pitch, printed at 10 µm resolution

03 / 04 — ALIGN
Fiber to connector, laser, detector & PIC
A printed structure that sets the exact position of a fiber relative to another optical component.

SHOWN: V-groove array, 3.6 × 0.925 × 3.15 mm, 60 µm groove radius, 110 µm grooves

04 / 04 — ASSEMBLE
Guide & retain individual fibers
Printed fixtures that control where every fiber sits during manufacturing, so assembly is easier, more repeatable and more precise.

SHOWN: MT ferrule 2×16, 125 µm holes on 250 µm pitch

Fiber optic systems live and die on alignment. A connector or ferrule off by even a few microns can introduce signal loss or coupling inefficiency — and as data rates climb and components shrink, those tolerances have only gotten tighter.

Traditional methods struggle to keep up. CNC machining gets slow and expensive as features shrink. Soft tooling means weeks of lead time for every design revision. And assembly-based approaches stack up tolerance errors part by part.

This application brief shows how Projection Micro Stereolithography (PµSL) removes the tooling step entirely — printing directly from CAD to 2µm resolution, with tolerances down to single digits.

What you’ll learn:

  • Why traditional manufacturing methods hit a wall at fiber-optic tolerances
  • Where PµSL fits for connectors, ferrules, multi-fiber arrays, guides, shuffle boxes and alignment structures
  • What to know before you design your first part
  • When 3D printing beats traditional methods — and when it doesn’t

Get the Fiber Optics Application Brief

Download the Fiber Optics Application Brief to see how micro-precision 3D printing helps teams hit tighter alignment tolerances and speed up connector, guide and ferrule development.
