INTRODUCING OUR NEWEST SOLUTION

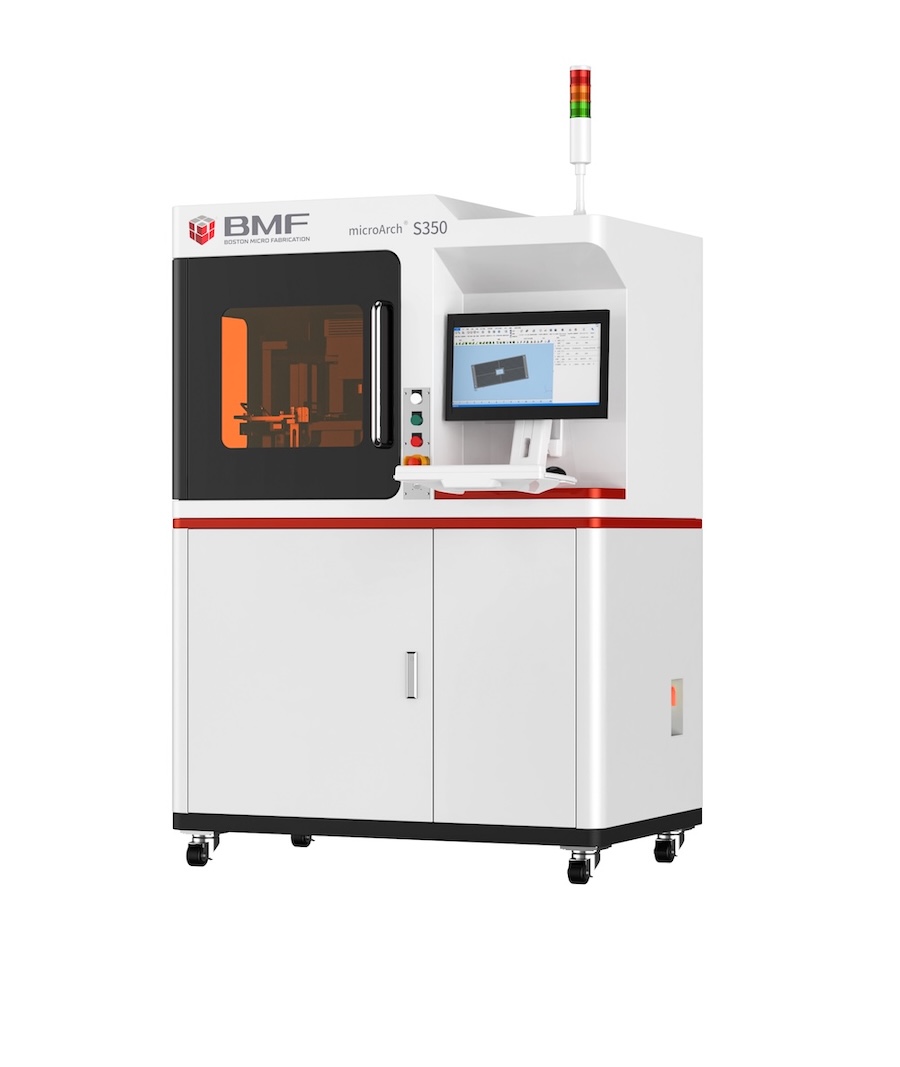

microArch S350
Micro-Precision 3D Printer

Our newest system, the microArch S350 is a 25μm platform which can be used not only for printing microscale parts with high-resolution features, but also for a broader range of small parts requiring high accuracy or precision. The microArch S350 combines high part quality with increased speed and throughput. With increased ease of use and built-in automation, the microArch S350 is BMF’s highest throughput printer designed for end part production.

Less time
Less money
More throughput
Faster Printing + Automation + More Materials
Higher Throughput
Larger DLP chip + 6 projection zones
Built-in Automation
Option for robotic integration
Industrial-Grade Engineering Materials
Ideal for production

Resolution × Accuracy × Precision

The microArch S350 is perfect for researchers and manufacturers for prototyping and production in the 1000-30,000 part volume range for parts requiring ultrahigh resolution, accuracy, and precision.

Features

  • Automated lateral membrane shift – enables automated part removal with option for robotic integration
  • Self-regulating resin adjustment system
  • Laser displacement sensor
  • Advanced roller system spreads layers in seconds
  • Larger DLP chip –> 6 projection zones – resulting in faster printing speeds

PµSL Technology

The microArch S350 is based on BMF’s innovative projection micro stereolithography (PµSL) technology, a technique that allows for rapid photopolymerization of a layer of liquid polymer using a flash of UV light at micro-scale resolution.

PRINTING TECHNOLOGY
PμSL
LIGHT SOURCE
UV-LED
LIGHT WAVELENGTH
405nm
PRINTING MATERIAL
Photosensensitive resins
INPUT DATA FILE FORMAT
STL
XY OPTICAL RESOLUTION
25µm
XY POSITIONAL ACCURACY
±1μm
PRINT SIZE
100 × 100 × 50mm
LAYER THICKNESS
10~50μm
TOLERANCE
+/- 50μm
POWER SUPPLY
2kW
PRINTER DIMENSIONS
1350 × 850 × 1900mm
PRINTER WEIGHT
500kg
VOLTAGE
110-220V
CERTIFICATIONS
CE
As one of BMF’s first customers, we’ve been excited by the performance of their high-resolution 3D printing solution. Most recently we have been evaluating BMF's first-generation microArch P150, and it has delivered accuracy that is not attainable by any other system we have used within our additive lab. With its high part quality and throughput suitable for production, as well as the ability to print a wider variety of materials, the microArch S350 has become a critical tool in printing high-resolution connectors, said Xiaoming Luo, Principal 3D Printing Engineer, Aerospace, Defense, and Marine (AD&M) at TE Connectivity. We feel the microArch S350 gives TE the ability to produce very high resolution connectors for our customers.
Xiaoming Luo
Principal 3D Printing Engineer, Aerospace, Defense, and Marine (AD&M) at TE Connectivity
