Something has quietly changed in the way electronic connectors are being specified. For decades, the connector design conversation centered on signal integrity, contact resistance, and mechanical reliability. Temperature was a consideration, but rarely the deciding factor. That is no longer the case.
The rapid expansion of AI infrastructure — the massive GPU clusters, high-density server racks, and power delivery systems that underpin modern machine learning — is pushing operating temperatures in data centers to levels that are exposing the limits of traditional connector materials. Engineers are discovering that components that performed perfectly well in previous-generation systems are struggling to keep pace with the thermal demands of today’s AI workloads.
Understanding why this is happening, and what material options are now available, is increasingly important for anyone designing connectors for next-generation applications.
The AI Infrastructure Build-Out Is a Thermal Problem
The numbers tell the story clearly. A standard data center server rack from a decade ago might have consumed 5–10 kilowatts of power. Today, high-density AI compute racks routinely reach 30–50 kilowatts, and next-generation configurations are pushing toward 100 kilowatts and beyond. Every watt of power consumed ultimately becomes heat that the system must manage.
That heat doesn’t stay neatly contained in processors and power supplies. It propagates through the entire interconnect ecosystem — the cables, the backplanes, the connectors, and the insulators that hold them all together. As power density increases, the sustained operating temperatures that connectors must endure are rising accordingly.
For connector design engineers, this creates a material challenge that is becoming harder to engineer around.
What Micro-Precision 3D Printing Delivers
Polytetrafluoroethylene — better known as PTFE — has been the dominant insulator material in high-performance connectors for generations, and for good reason. It offers excellent dielectric properties, low friction, chemical resistance, and reasonable thermal performance up to around 260°C continuous operating temperature.
In many applications, that ceiling is more than sufficient. But in sustained high-temperature environments — particularly those involving thermal cycling, which is characteristic of data center workloads that ramp up and down with compute demand — PTFE’s material behavior becomes a liability.
Under prolonged thermal stress, PTFE can exhibit cold flow, a phenomenon in which the material slowly deforms under mechanical load at elevated temperatures. In a precision connector insulator, even small dimensional changes can compromise contact alignment, increase insertion loss, and ultimately degrade the signal integrity that the connector was designed to maintain.
Beyond the engineering performance question, there is a growing regulatory dimension. PTFE belongs to the PFAS (Per- and Polyfluoroalkyl Substances) family of synthetic chemicals, which are facing increasing scrutiny and restriction across multiple jurisdictions due to their environmental persistence. For manufacturers planning components with long product lifespans, the regulatory trajectory of PTFE is an additional reason to evaluate alternatives now rather than later.
What High-Temperature Connector Applications Actually Need
When design engineers start evaluating alternative insulator materials for high-temperature connector applications, the requirements list is demanding:
- Dimensional stability under sustained thermal load and across repeated thermal cycles
- Dielectric properties that are maintained at elevated temperatures, not just at room temperature
- Mechanical strength sufficient to withstand the forces of connector mating and unmating
- The ability to be manufactured to the tight tolerances that precision connector geometry demands
- Ideally, freedom from PFAS compounds for regulatory resilience
For a long time, finding a material that checked all of these boxes — and that could be manufactured into complex micro-scale geometries with the required precision — was genuinely difficult. That is changing.
Ceramic Micro 3D Printing: A New Manufacturing Route for High-Temperature Connector Components
Alumina (aluminum oxide) ceramic is not a new material. It has been used in demanding industrial and electronic applications for decades, valued for its exceptional thermal stability, strong dielectric properties, and chemical inertness. Alumina remains dimensionally stable at temperatures up to 1,600°C — a ceiling that makes PTFE’s 260°C limit look modest by comparison.
The challenge has always been manufacturability. Producing complex, tight-tolerance ceramic components using traditional methods — pressing, sintering, grinding — is expensive, time-consuming, and difficult to apply to the intricate geometries that modern connector insulators require. Small features, internal channels, and fine dimensional tolerances have historically been extremely challenging to achieve in ceramic.

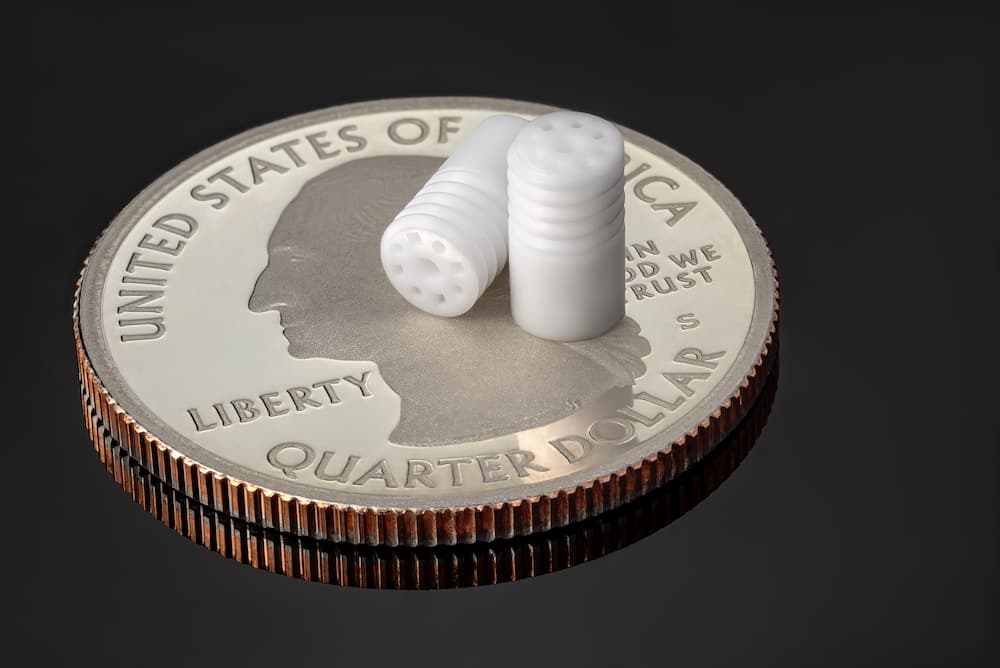

Micro-scale 3D printing is changing that equation. Using Projection Micro Stereolithography (PµSL) technology, BMF’s microArch platform can produce alumina ceramic components with resolutions as fine as 10–25 microns and dimensional tolerances of ±10 microns. Geometries that would be prohibitively difficult or impossible to achieve through conventional ceramic manufacturing — thin walls, complex cross-sections, precision alignment features — become accessible through an additive process.
The result is a manufacturing pathway that combines the material performance advantages of alumina ceramic with the geometric freedom and rapid iteration capability of additive manufacturing.
What This Means for Connector Design Teams
For engineers working on connectors for AI data center applications — or any application where sustained high operating temperatures are a concern — ceramic micro 3D printing opens up a set of options that were not previously practical:
- Insulator bodies and housing components that maintain dimensional stability across the thermal cycles typical of data center workloads
- A PFAS-free material solution that addresses both engineering performance requirements and emerging regulatory considerations
- The ability to prototype and iterate on complex insulator geometries quickly, without the lead times and tooling costs associated with traditional ceramic manufacturing
- A production pathway for small-to-medium volume connector components that would be uneconomical to tool for injection molding
This is particularly relevant for engineers working at the leading edge of AI infrastructure design, where component specifications are evolving rapidly and the ability to iterate quickly has real commercial value.
The Connector Material Conversation Is Changing
The growth of AI computing is not a temporary phenomenon, and the thermal demands it places on electronic connectors are not going to diminish. Engineers who are specifying connector materials today are making decisions that will affect system performance for years, in environments that are likely to become more thermally demanding, not less.
Ceramic micro 3D printing will not be the right solution for every connector application. But for design teams working on high-temperature, high-performance interconnect systems — particularly those facing PTFE’s thermal ceiling or evaluating their PFAS exposure — it represents a manufacturing option that is worth understanding.
BMF’s applications engineering team works directly with connector design teams to evaluate whether ceramic micro 3D printing is a fit for specific component requirements, and to support the design and qualification process.
Interested in evaluating ceramic micro 3D printing for your connector application?
Request a ceramic sample part or contact BMF’s applications engineering team to discuss your requirements.
